HST Built-in Guideway Linear Actuator

This series is screw driven, with fully enclosed, small, lightweight and high rigidity features. This stage contains a motor-driven balls crew module equipped with a stainless steel cover strip to prevent particles from entering or exiting.

Send email to us

Product Detail

Product Tags

Built-in guideway Linear Actuator Introduction

The KGG Enclosed Linear Actuator has a lightweight and miniature construction that offers high performance in position accuracy and efficiency. It can be assembled and used immediately, suitable for horizontal and vertical transfer applications, and can also be grouped into multi-axis to meet the needs of customers with high precision and high load, and is widely used in the automation market.

Built-in guideway Linear Actuator Details

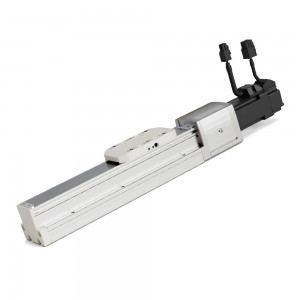

HST Embedded Enclosed Ball Screw Drive Actuator

HST series has 6 types, all of them are with special steel belt structure design, can reduce dust, can be used in a clean indoor environment. Without removing the steel belt, it can be fixed from top to bottom or from bottom to top. Increase the installation reference plane support on the side. The bottom of the body has a positioning PIN hole. All series can be filled with oil externally without removing the cover


HST40 Series	HST50 Series	HST50S Series	HST80 Series	HST80S Series	HST120 Series
Width: 45mm	Width: 50mm	Width: 50mm	Width: 80mm	Width: 80mm	Width: 120mm
Maximum Stroke: 800mm	Maximum Stroke: 800mm	Maximum Stroke: 325mm	Maximum Stroke: 1100mm	Maximum Stroke: 425mm	Maximum Stroke: 1250mm
Maximum Payload: 25kg	Maximum Payload: 30kg	Maximum Payload: 30kg	Maximum Payload: 50kg	Maximum Payload: 50kg	Maximum Payload: 110kg
Screw Diameter:φ10mm	Screw Diameter:φ12mm	Screw Diameter:φ12mm	Screw Diameter:φ16mm	Screw Diameter:φ16mm	Screw Diameter:φ16mm
PDF Download	PDF Download	PDF Download	PDF Download	PDF Download	PDF Download
2D/3D CAD	2D/3D CAD	2D/3D CAD	2D/3D CAD	2D/3D CAD	2D/3D CAD
