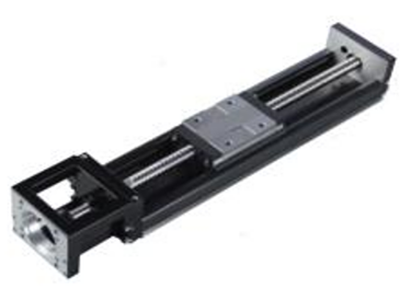

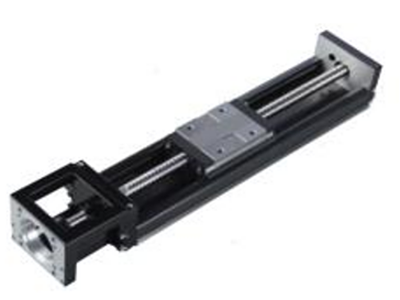

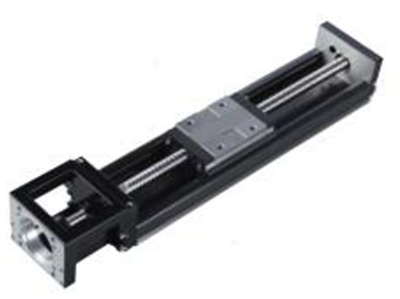

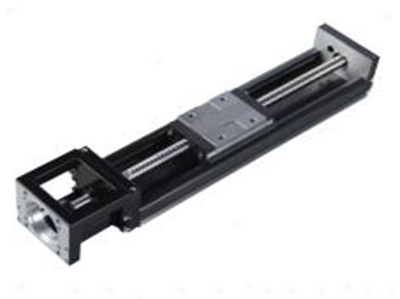

KGG High Rigidity Linear Actuator Motion KK Module for Photovoltaic Equipment KGX Series

KGX series has 6 types, all of them are screw drive with high rigidity and high speed.

KK Series industrial stage modularizes both ballscrew and guideway to achieve better performance on accuracy, stiffness, raipd installation, and space saving. With the block of KK driven by balls crew and sliding on the optimized U-rail, greater stiffness and high accuracy are therefore performed.Features:

Easy for system design, installation and maintenance
Compact and lightweight
High accuracy and high stiffness
Well equipped with required accessories
Design Optimization*
* high stiffness + lightweight structure

Application:

1.Medical industry
2.Lithium battery industry
3.Solar photovoltaic industry
4. Semiconductor Industry
5. General industry machinery
6. Machine tool
7. Parking system
8. High-speed rail and aviation transportation equipment
9. 3C industry etc

Pic
Model	KGX40 Series	KGX50 Series	KGX60 Series	KGX86 Series	KGX100 Series	KGX130 Series
Width mm	40mm	50mm	60mm	86mm	100mm	130mm
Maximum Stroke mm	200mm	300mm	600mm	940mm	1380mm	1680mm
Maximum Payload kg	73kg	231kg	374kg	714kg	704kg	789kg
Maximum speed	190mm/s	270mm/s	1100mm/s	1480mm/s	1120mm/s	1120mm/s
PDF Download	*	*	*	*	*	*
2D/3D CAD	*	*	*	*	*	*
