Shanghai KGG Robots Co., Ltd. is a domestic high-quality supplier of miniature ball screw, single-axis manipulator and coordinate multi-axis manipulator. It is a technological innovation and production enterprise with independent design and development, production and sales, and engineering services. The main products are miniature ball screw, small diameter and large lead micro module, European standard belt roller module, standard screw type single-axis manipulator, multi-axis manipulator, motor screw direct connection type, ZR actuator, linear motion guide and linear motor . Products are widely used in 3C electronics, lithium batteries, solar energy, semiconductors, biotechnology, medicine, automobiles and other related industries for handling, transfer, coating, testing, cutting and other fields.
The company has a product technology research and development center, and has a professional design and development team and management team. It integrates many years of process experience into the slider module control system with independent intellectual property rights, which realizes humanization and convenience. Innovations and breakthroughs have been made in module technology and structure. The product has obtained 2 soft copyrights and 19 utility patents.
Shanghai KGG Robots Co., Ltd. is proud to introduce three heavyweight products – PT type variable pitch sliding table, GSSD with motor screw direct link, and ZR actuator. Let’s have a quick look at the highlights of these three products.

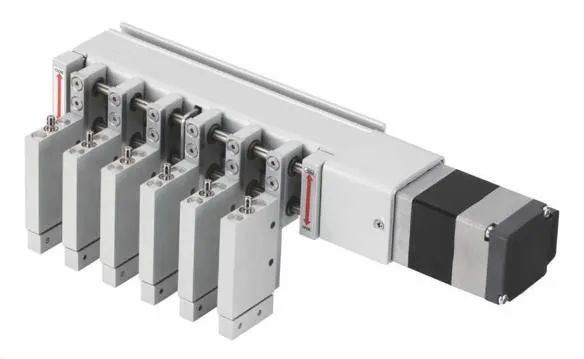

Variable Pitch Slide PT Type
Feature of Product:
1.Compact body with a minimum width of only 30mm, saving work space.
2.The pitch can be flexibly changed arbitrarily, and the pitch range is 8~90mm.
3.Highly customizable with up to 9 sliders.
Structural Advantages:
1.Easy maintenance and assembly.
2.Shorten man-hour design and installation.
3.High-precision variable pitch, high-speed and long-term stable operation.

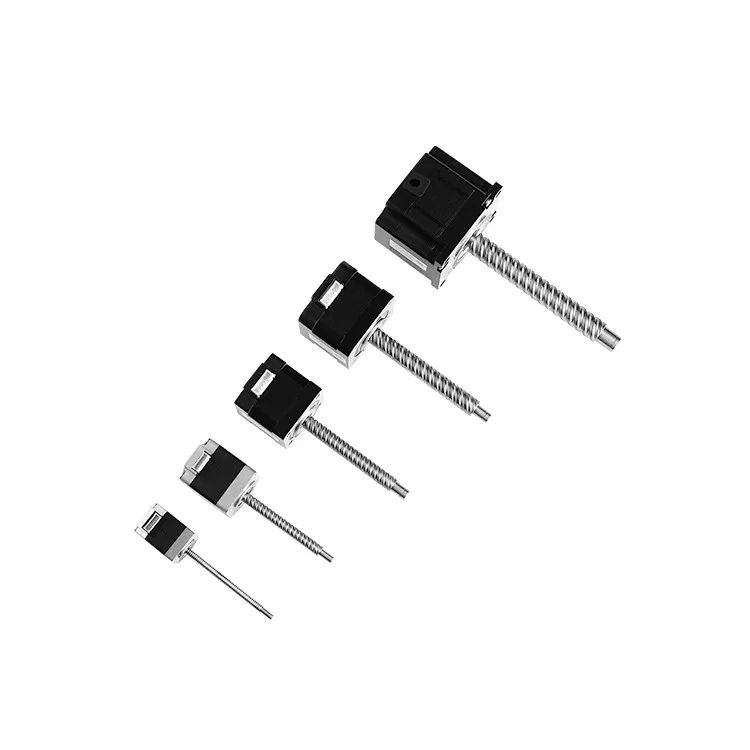

Motor Screw Direct Connection Product GSSD
Feature of Product:
1.High precision, high stability, superior cost performance.
2.Compact structure, small and light weight.
3.There are many styles of shaft ends, and non-standard customization is available.
Structural Advantages:
1.2-phase stepping motor and rolled ball/sliding screw integrated product, saving size.
2.The stepper motor is directly installed on the shaft end of the screw without coupling, which reduces the combination accuracy error.
3.The axis of the ball screw is used as the rotation axis of the motor, which is an ideal structure with simple transmission.
ZR Actuator
Feature of Product:
1.Low noise, smooth operation.
2.Provide Z-axis up and down and θ-axis rotation to achieve diversified operations
3.Compact structure, small and lightweight structure.
4.Pressure control for precise manipulation.
Structural Advantages:
1.The hollow motor directly drives the ball screw and ball spline nut, resulting in a compact exterior shape.
2.The encoder closed-loop structure realizes precise control.
3.The axial clearance is 0, and the operation is more stable.
For more detailed product information, please email us at amanda@KGG-robot.com or call us: +86 152 2157 8410.
Post time: Mar-06-2023
