Single-axis robots, also known as single-axis manipulators, motorised slide tables, linear modules, single-axis actuators and so on. Through different combination styles can be achieved two-axis, three-axis, gantry type combination, so multi-axis is also called: Cartesian Coordinate Robot.

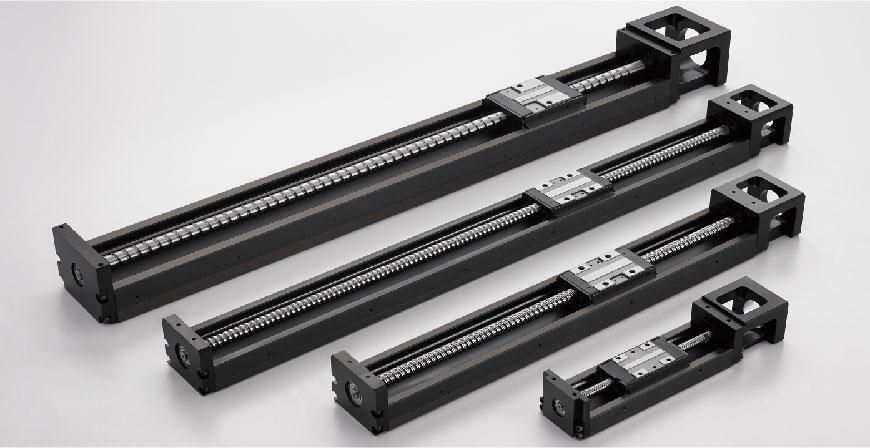

KGG utilize a combination of a motor driven ball screw or belt and linear guideway system. These compact and lightweight units are customizable and can be easily transformed into a multi-axis system, making them suitable for a wide range of industrial applications. KGG has a wide range of linear actuators to choose from: Built-in guideway actuator、KK high rigidity actuators、Fully enclosed motor integrated single axis actuators、PT variable pitch slide series, ZR axis actuators etc.
KGG’s new generation of fully enclosed motor integrated single-axis actuators is primarily based on a modular design that integrates ball screws and linear guides, thus offering high precision, quick installation options, high rigidity, small size and space saving features. High precision ball screws are used as the drive structure and optimally designed U-rails are used as the guide mechanism to ensure accuracy and rigidity. It is the best choice for the automation market as it can significantly reduce the space and time required by the customer, while satisfying the horizontal and vertical load installation of the customer, and can also be used in combination with multiple axes.

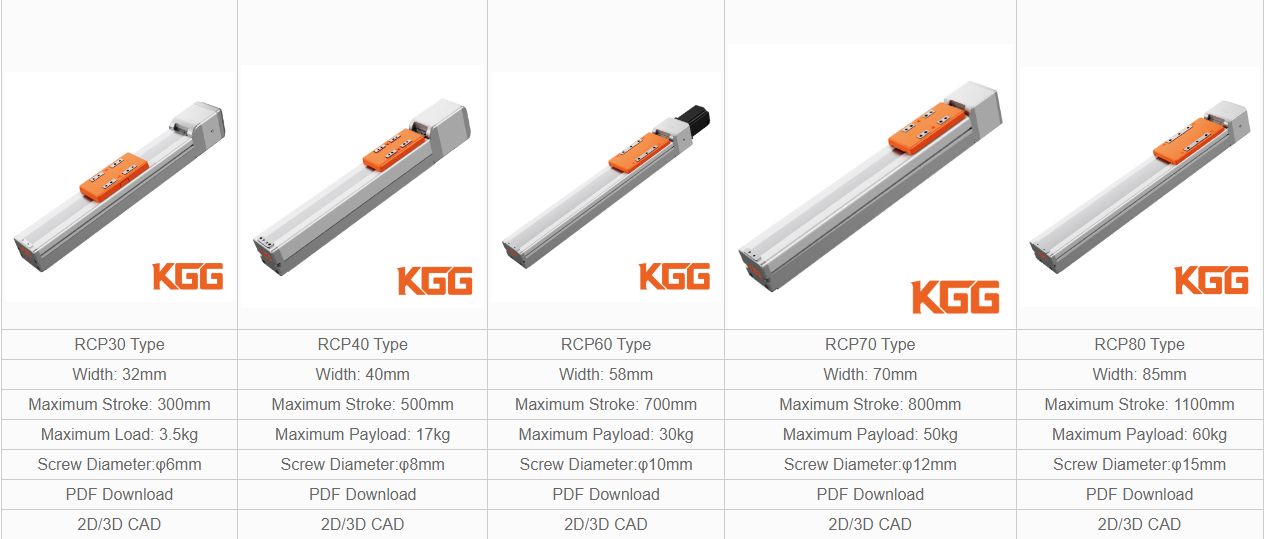

RCP Series Fully Enclosed Motor Integrated Single Axis Actuator
RCP series has 5 types, all of them are with special steel belt structure design for effective dust and fog protection and can be used in clean indoor environments. Integrated motor and screw, no coupling design. Support for customised dual slider construction,single axis left and right rotation for left and right opening and closing and pre-precise positioning.Maximum repeatable positioning accuracy up to ±0.005mm.
Single-axis robot selection, first of all, to clarify the load level of the equipment, the required repeatability of positioning accuracy, walking parallelism and other requirements for the initial selection of single-axis robots; the next need to determine the use of the environment, is it a clean environment or harsh environment? According to the environment to choose the performance of single-axis robots.
Finally, we also need to determine the single-axis robot motor mounting, commonly used mounting methods have direct connection type, motor left side mounting, motor right side mounting, motor bottom side mounting, etc., according to their own needs to choose.
For more detailed product information, please email us at amanda@kgg-robot.com or call us: +86 152 2157 8410.
