RCP Series Fully Enclosed Motor Integrated Single Axis Actuator

KGG’s new generation of fully enclosed motor integrated single-axis actuators is primarily based on a modular design that integrates ball screws and linear guides, thus offering high precision, quick installation options, high rigidity, small size and space saving features. High precision ball screws are used as the drive structure and optimally designed U-rails are used as the guide mechanism to ensure accuracy and rigidity. It is the best choice for the automation market as it can significantly reduce the space and time required by the customer, while satisfying the horizontal and vertical load installation of the customer, and can also be used in combination with multiple axes.

Send email to us

Product Detail

Product Tags

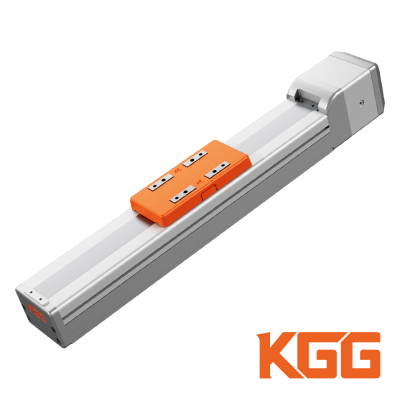

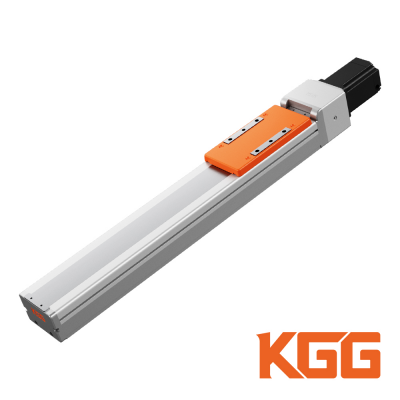

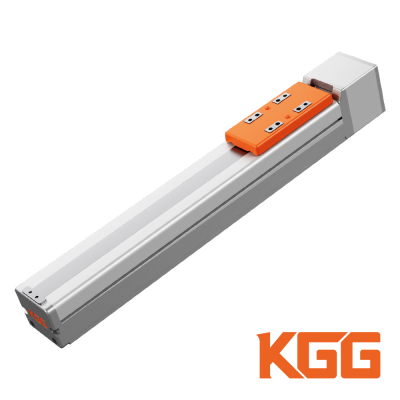

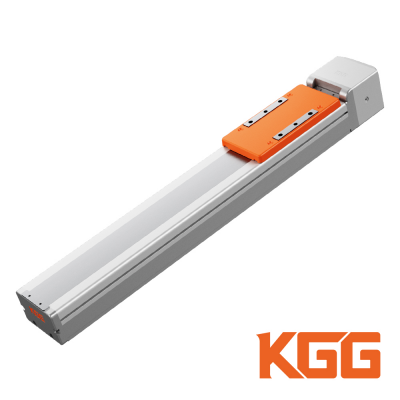

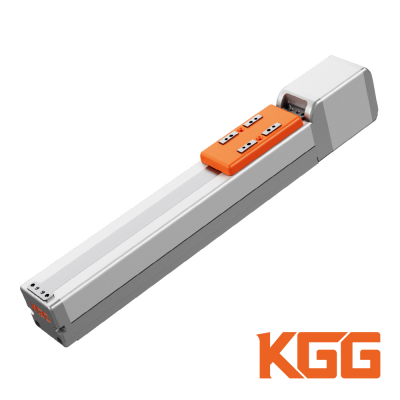

RCP Series Fully Enclosed Motor Integrated Single Axis Actuator

RCP series has 5 types, all of them are with special steel belt structure design for effective dust and fog protection and can be used in clean indoor environments. Integrated motor and screw, no coupling design. Support for customised dual slider construction,single axis left and right rotation for left and right opening and closing and pre-precise positioning.Maximum repeatable positioning accuracy up to ±0.005mm.

Fully Enclosed Structure With Steel Belt

Effective dustproof and waterproof fog

No Coupling Design

The motor screw is integrated, no coupling loosening problem.

Customisable Double-slider Structure

Left and right rotation, through a single axis can achieve left and right opening and closing, precision positioning.

Max. Repeatable Positioning Accuracy ±0.005MM

R±0.01MM C7 cold rolled ball screws

G±0.005MM C5 precision ball screws

Re±0.005MM C7 Cold Rolled Sliding Screws

High precision linear module adopts precision ball screw, with good positioning accuracy and matching with linear slider guide rail, to ensure that the products are suitable for high-precision applications in complex environments.

You are welcome to

watch our video centre for more projects or visit our website load down e-catalogues for further technical data.

Application

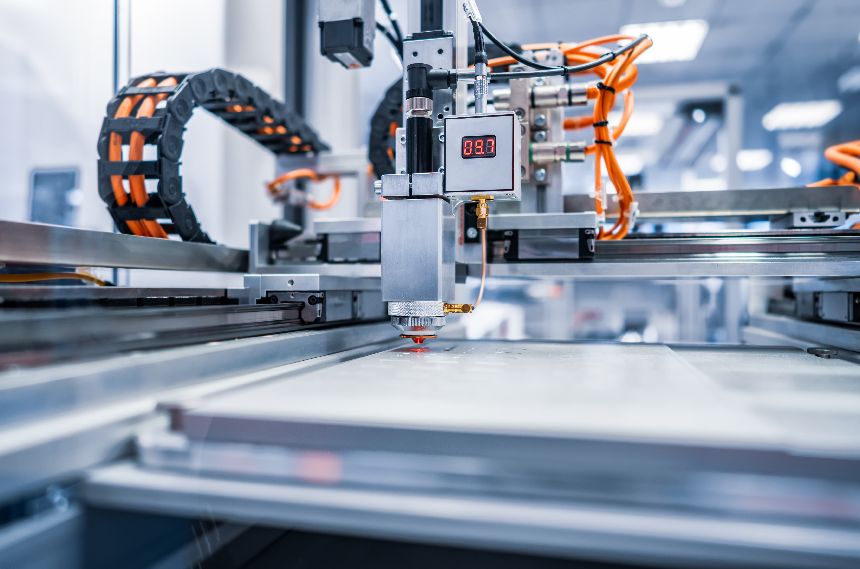

The application of linear modules has been expanding around the world. It move fast in recent years in China. The linear modules has been developed even faster, and the quality is good. It attracts equipment manufacturers and has been widely used in various devices, contributing a lot to the development of equipment manufacturing in China,providing engineers more time on equipment R&D and manufacturing.

Linear modules have been widely used in measurement:

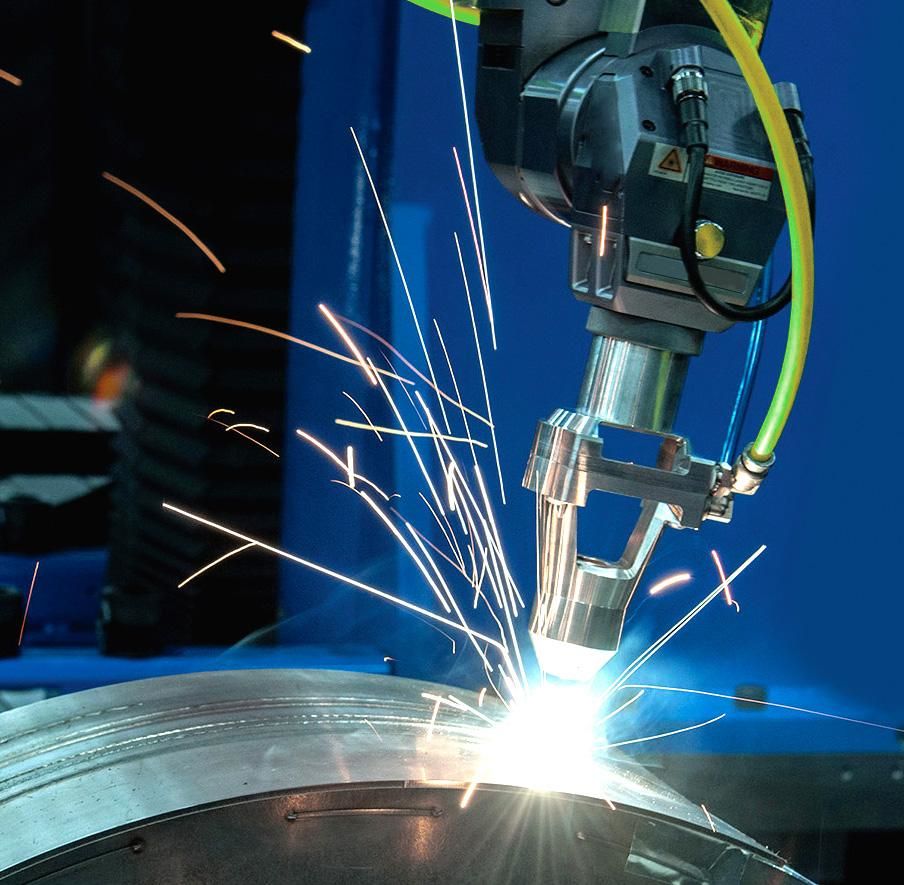

→laser welding
→laser cutting
→gluing machine
→spraying machine
→punching machine
→dispensing machine

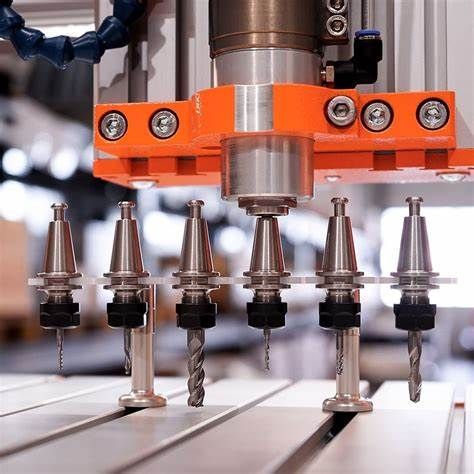

Small CNC machine tool, engraving and milling machine, sample plotter, cutting machine, transfer machine ,sorting machine, testing machine and applicable education and other applications.

Procurement Guide
Please refer to the table below to select the actuator you need.


RCP30 Type	RCP40 Type	RCP60 Type	RCP70 Type	RCP80 Type
Width: 32mm	Width: 40mm	Width: 58mm	Width: 70mm	Width: 85mm
Maximum Stroke: 300mm	Maximum Stroke: 500mm	Maximum Stroke: 700mm	Maximum Stroke: 800mm	Maximum Stroke: 1100mm
Maximum Load: 3.5kg	Maximum Payload: 17kg	Maximum Payload: 30kg	Maximum Payload: 50kg	Maximum Payload: 60kg
Screw Diameter:φ6mm	Screw Diameter:φ8mm	Screw Diameter:φ10mm	Screw Diameter:φ12mm	Screw Diameter:φ15mm
PDF Download	PDF Download	PDF Download	PDF Download	PDF Download
2D/3D CAD	2D/3D CAD	2D/3D CAD	2D/3D CAD	2D/3D CAD
