Precision Ball Screw Introduction And Selection Table

KGG provides customized Precision Ground Ball Screws with flexible design and short delivery time. Customers can choose suitable products according to their actual situation.

搜索

复制

Precision Ball Screw Details

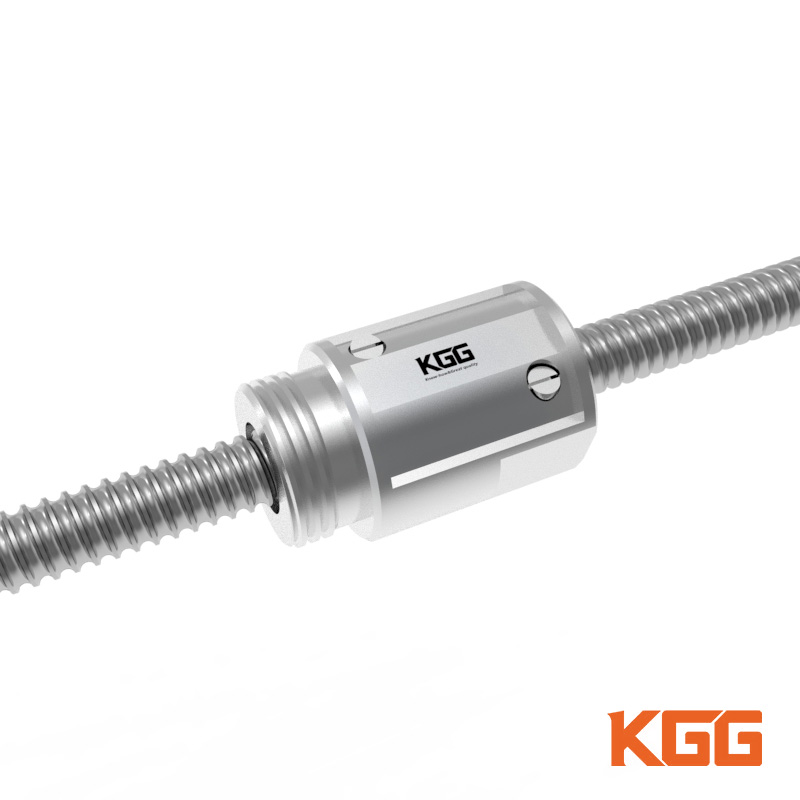

Miniature High Load Single Nut with M-thread GLM Precision Ball Screw

The Cylindrical type with M-thread at the Nut end. The Nut should be mounted using M-thread. It is suitable for mounting with cylinder.

Accuracy grade of GLM series are based on C3 and C5 (JIS B 1192-3). According to accuracy grade, Axial play 0 (Preload: C3) and 0.005mm or less (C5) are available.

GLM series of screw shaft screw material S55C (induction hardening), nut material SCM415H (carburizing and hardening), the surface hardness of the ball screw part is HRC58 or higher.

搜索

复制

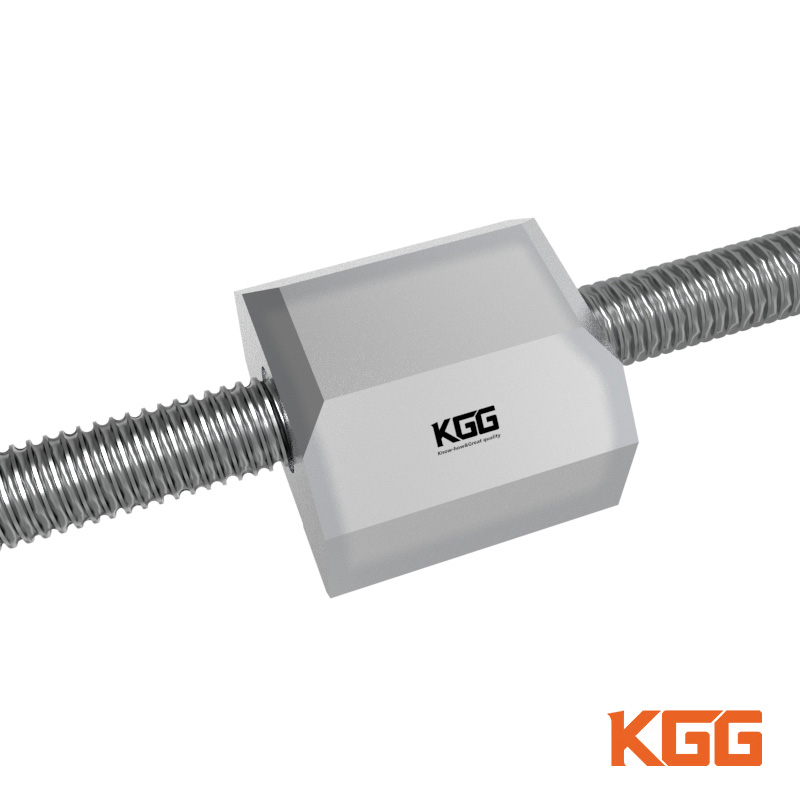

Miniature Square Single Nut High Speed FXM Precision Ball Screw

The square Nut is finished with a large mounting face parallel to the Nut center. Nut itself has Housing function. This allows for a more compact design compared to Flange type.

Our FXM series has two types of accuracy grades, JIS C3/C5. Axial clearance is available in 0mm (preload: C3) and 0.005mm or less (C5) depending on the accuracy class.

FXM series of screw shaft screw material S55C (induction hardening), nut material SCM415H (carburizing and hardening), the surface hardness of the ball screw part is HRC58 or higher.

搜索

复制

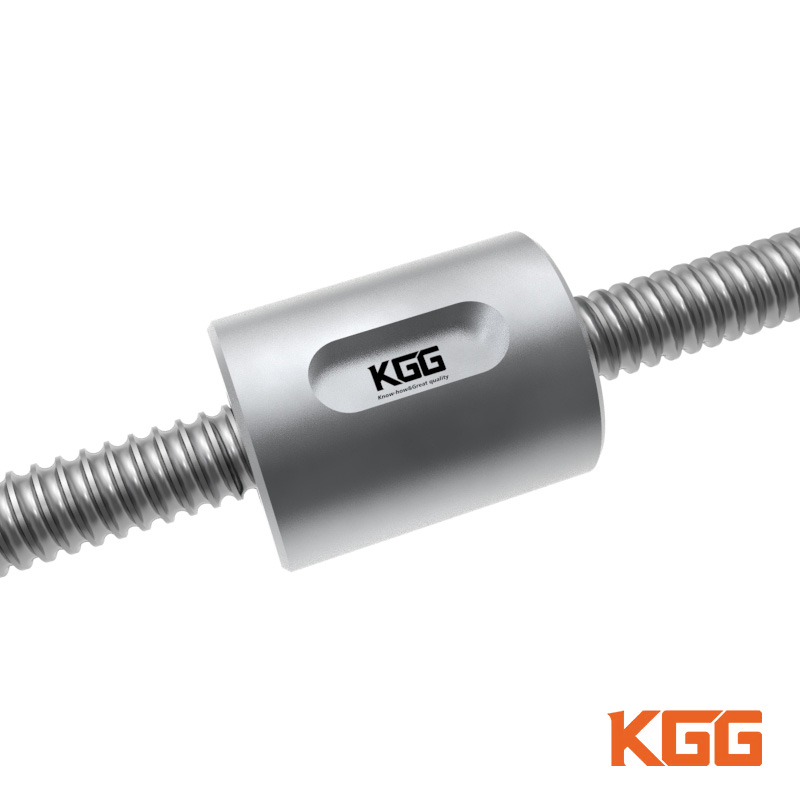

Miniature Rustproof Sleeve Type TXM Single Nut Precision Ball Screw

It is cylindrical single nut which is compact. The nut should be mounted by clamping on the keyway on the nut outer and nut end surface.

Accuracy grade of TXM series are based on C3 and C5 (JIS B 1192-3). According to accuracy grade, Axial play 0 (Preload: C3) and 0.005mm or less (C5) are available.

TXM series of screw shaft screw material S55C (induction hardening), nut material SCM415H (carburizing and hardening), the surface hardness of the ball screw part is HRC58 or higher.

搜索

复制

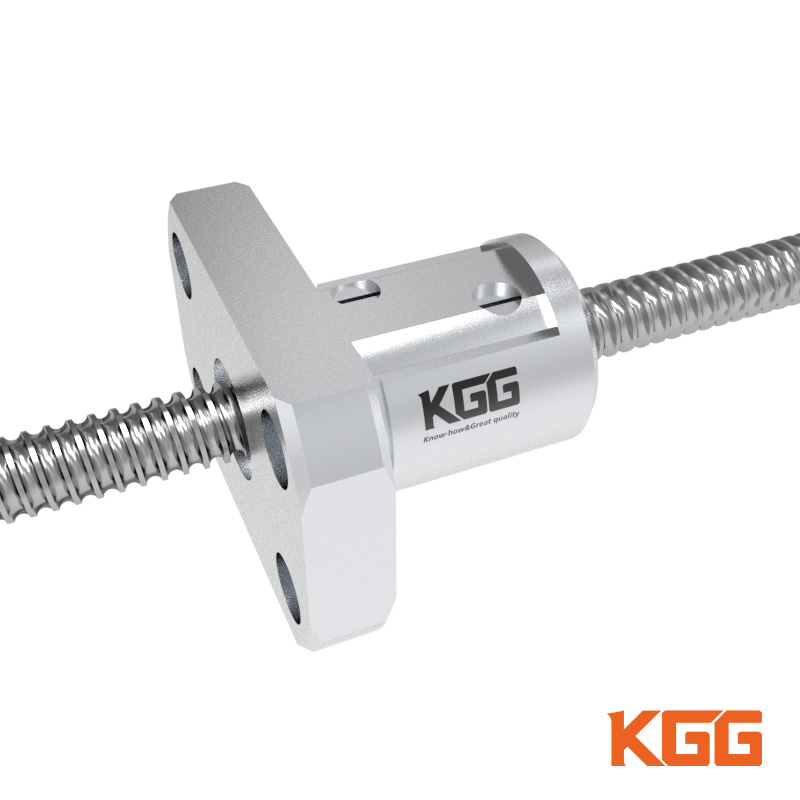

High lead Miniature High load Integrated GG Precision Ball Screw

High Lead Miniature High Load GG Precision Ball Screw with Integrated end-journal

Accuracy grade of GG series are based on C3 and C5 (JIS B 1192-3). According to accuracy grade, Axial play 0 (Preload: C3) and 0.005mm or less (C5) are available.

GG series of screw shaft screw material S55C (induction hardening), nut material SCM415H (carburizing and hardening), the surface hardness of the ball screw part is HRC58 or higher.

搜索

复制

Miniature Bi-directional High Load Rustproof SXM Precision Ball Screw

Since there are both right-side thread and left-side thread on a shaft, it has bi-directional function.

The SXM series has two types of accuracy grades, JIS C3/C5. Axial clearance is available in 0mm (preload: C3) and 0.005mm or less (C5) depending on the accuracy class.

搜索

复制

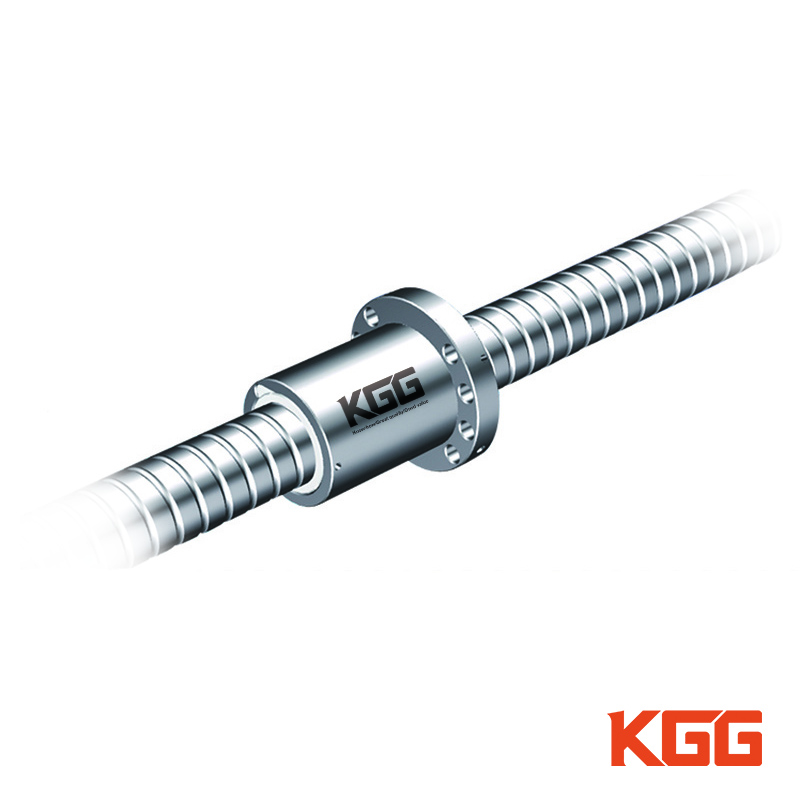

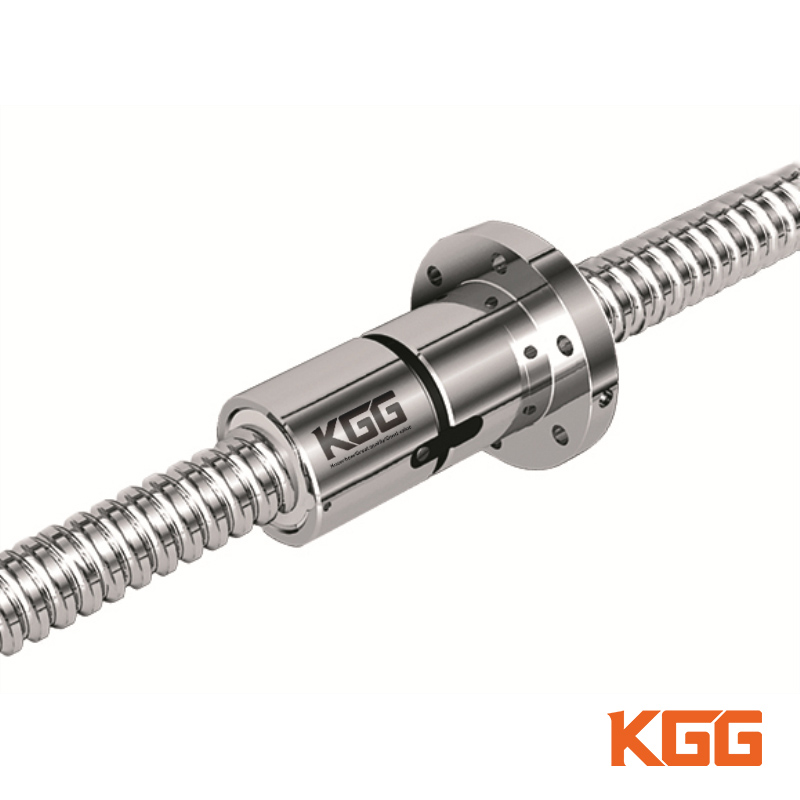

High Lead Compact High Speed Rustproof DKF/DKFZD Precision Ball Screws

 KGG has two types of compact (DKF&DKFZD) and standard (DKF&DKFZD) High Speed Precision Ball Screws.

Large-Lead High Speed Large Pitch Rustproof DKF Precision Ball Screws

KGG offers a large-lead version ball screws.

Electric Injection Molding Machines High-load CTF/CMF Ball Screws

Specially used for electric injection molding machines, high load, high speed operation and long life

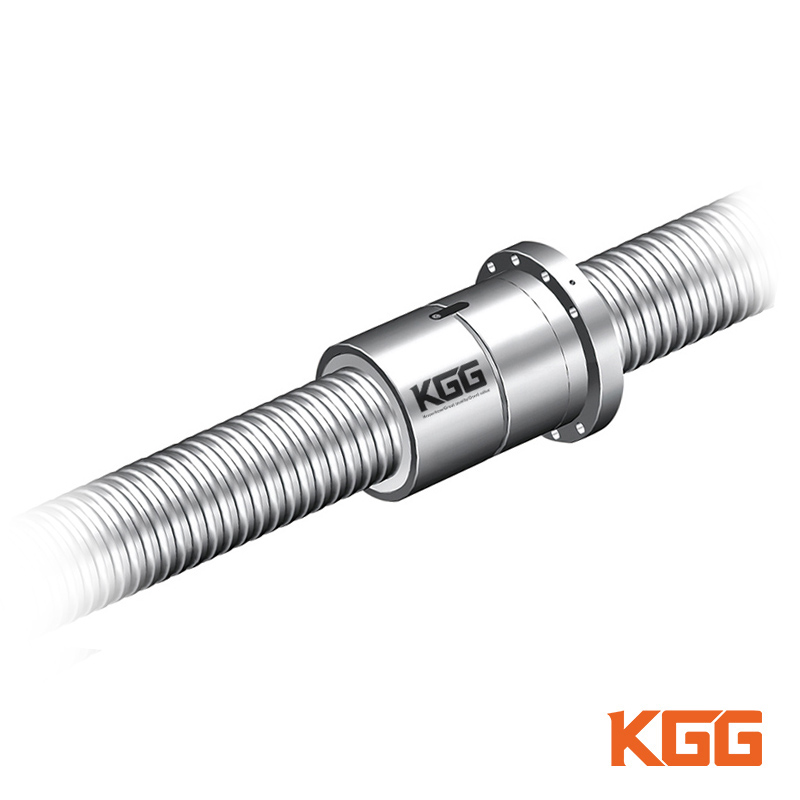

Large Heavy Load High lead JF/JFZD Precision Ball Screws

Application: Large and heavy-duty CNC lathes, CNC boring machines, CNC milling machines, large steel smelting equipment, jacks and spinning machines and other mechanical equipment.

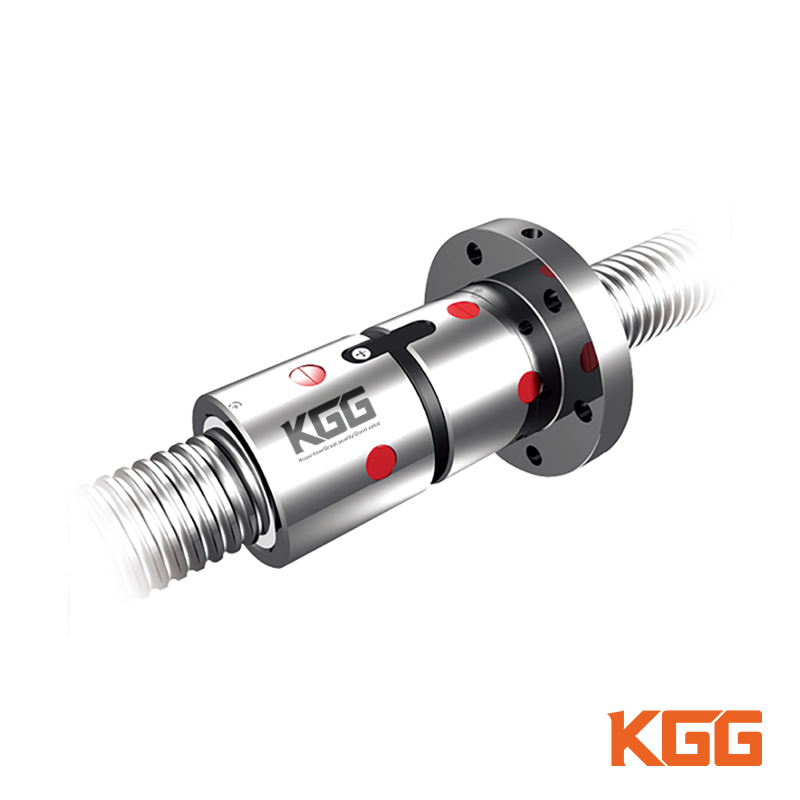

High lead Internal Circulation Floating Rustproof FF/FFZ Ball Screw

High transmission efficiency and positioning accuracy, long service life

Other High Lead High precision Circulating Way Rustproof Ball Screw

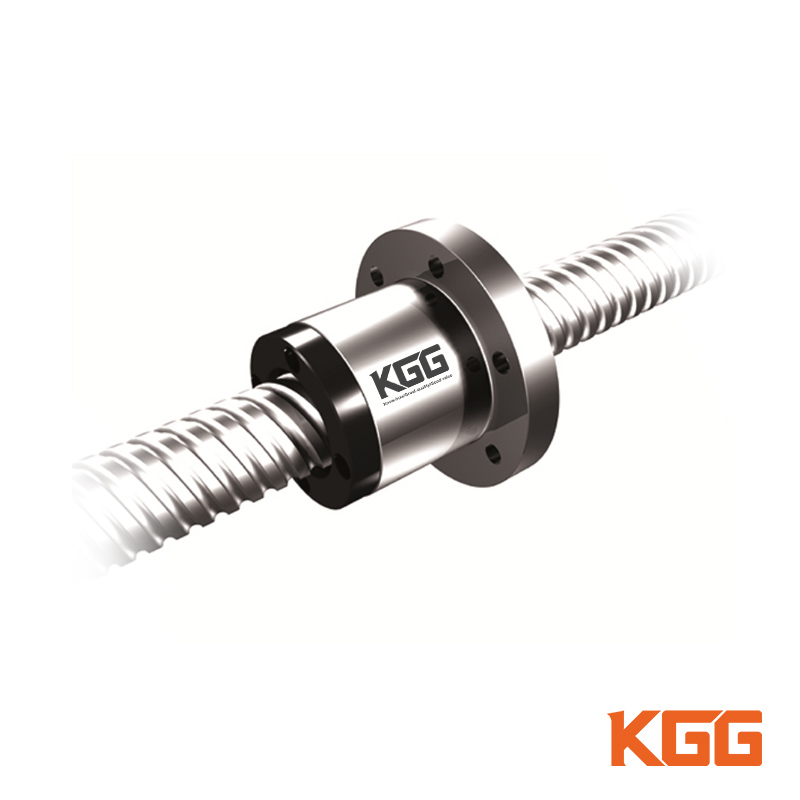

KGG has 5 ball screws with other circulation methods: JF miniature ball screw, CMFZD external circulation cannula embedded gasket preload type, CTF external circulation cannula protruding type, DGF and DGZ internal circulation end caps type.

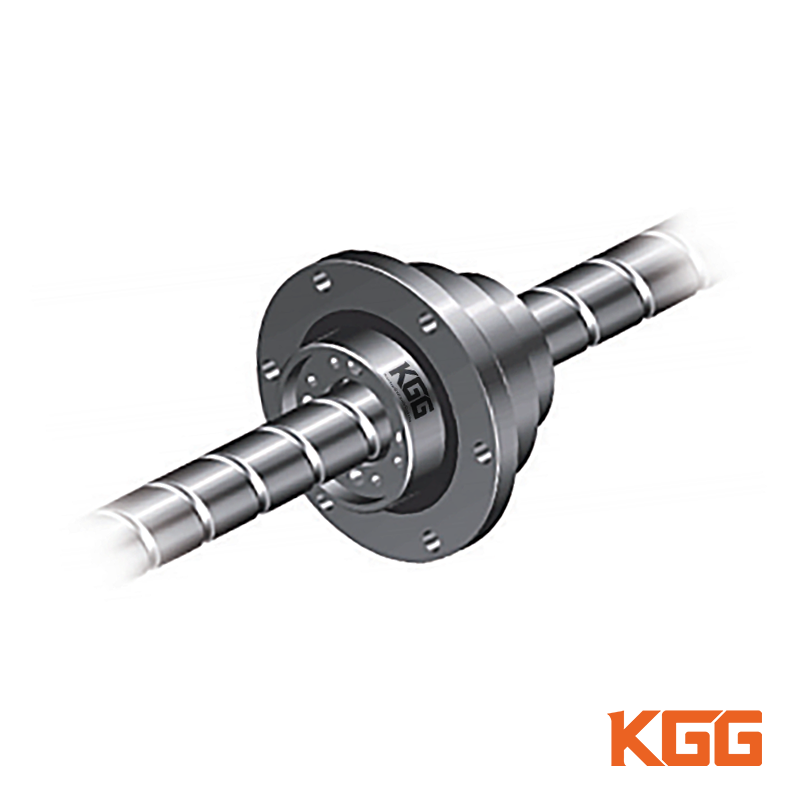

High Lead Rotating Nuts Precision Light Load Rustproof Ball Screws

The rotating nut combination unit is a transmission system that converts the rotary motion of the ball nut into the linear motion of the nut itself (or ball screw). It is an extension product of the ball screw pair, and its main components are composed of a ball screw pair, a rolling bearing pair, a nut seat, a pre-tightening adjustment (locking) device, a dust-proof device, and a lubricating oil circuit.

Application:

Semi-conductor industries, Robots, Wood machines, Laser cutting machines, Transporting equipment.

Features:

1. Compact and high positioning:

It is a compact design using nut and support bearing as an integral unit. 45-degree steel ball contact angle make a better axial load. Zero backlash and higher stiffness construction give a high positioning.

2. Simple installation:

It is installed simply by fixing the nut on the housing with bolts.

3. Rapid feed:

No inertial effect produced by the integral unit rotating and the shaft fixed. Can select smaller power to meet the rapid feed requirement.

4. Stiffness:

Have a higher trust and moment stiffness, because the integral unit have an angular contact construction. There is no backlash while rolling.

5. Quietness:

Special end cap design allows steel balls circulating inside the nut. Noise generated by high speed operation lower than ordinary ball screw.

We have two types of light load and heavy load rotating nuts: XDK & XJD series.
